Oil & Gas Case Study — Mariner Oil Field, Offshore Norway

Sector:

Oil and gas

Project:

Mariner Oil Field, off shore Norway

Application Details:

Acoustic Enclosures for Water and Diluent Injection Pump Packages

Supply Scope:

Series of 316 grade stainless steel acoustic enclosures supplied for 6 no specialised pump sets.

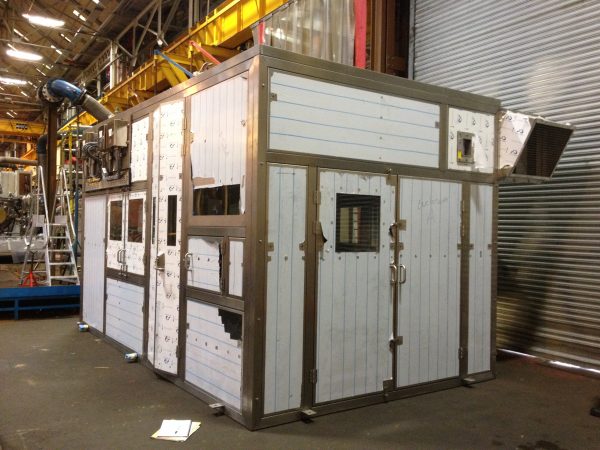

The enclosure units were pre-assembled within our factory prior to being fitted out with fire and gas detection systems and titanium water deluge piping.

The overall dimensions of the larger enclosure packages were approximately 9.0m x 4.1m x 4.3 m. Given the scale of the enclosures on site the product design required that the product was manufactured in a sectional modular form for transportation . Final commissioning and installation  were undertaken by our on site team prior to factory acceptance testing.

Product Selection and Performances:

The enclosures were designed with material panel thickness to reduce the untreated noise levels from typically 95-100dB(A) at 1 metre.
